€340,40 excl. TAX

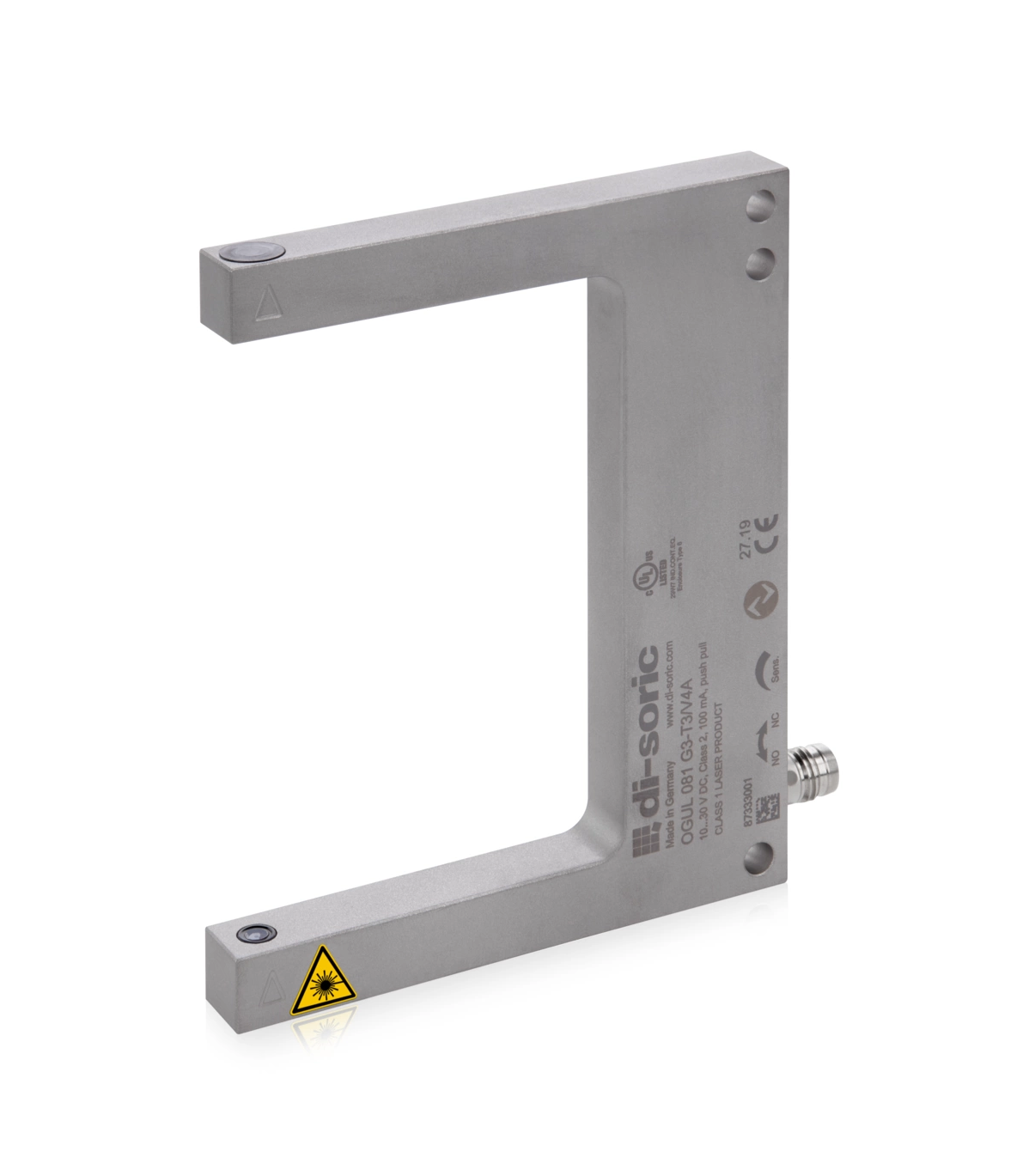

The OGUL series is a fork sensor particularly suited for the detection of small parts from 0.05 mm. Through the use of collimated laser red light, a high degree of precision of the switching point between transmitter and receiver across the entire fork width is achieved. The devices work with a clocked red light laser in the eye-safe laser class 1. The easily visible, small laser point makes quick adjustment to the object possible even with a large amount of ambient light.
| Housing material | Stainless-steel V4A |
|---|---|
| Series | OGUL Stainless Steel |
| Manufacturer | Di-Soric |
| Fork opening | 80 mm |
| Fork length | 80 mm |
| Output | IO-Link, NO/NC, NPN, PNP, Push-Pull |
| Light Source | Red light laser, class 1 |
| Enclosure rating | IP67 |
| Connection | M8 3-pin |
| Sensitivity adjustment | IO-Link, Potentiometer |
| Resolution | Ø 0.05 mm |
